GPS/GSM Combination Antenna
| Name: | GPS/GSM Combination Antenna |
| GPS Frequency: | 1575.42 MHz±3 MHz |
| GSM Frequency: | 824~894 MHz/1710~2170 MHz |
| Waterproof: | IP67 |
Product Description
GPS/GSM Combination Antenna
The GPS/GSM combo antenna could be used on vehicle automation; fleet management; alarm, controlling(remote monitoring), security on intelligent products, and navigation; trackers etc.
1) Dielectric Antenna
|
|
Center Frequency
|
1575.42 MHz±3 MHz
|
V.S.W.R
|
1.5:1
|
Band Width
|
±5 MHz
|
Impedance
|
50 ohm
|
Polarization Type
|
R.H.C.P
|
2) LNA/Filter
|
|
LNA Gain(w/o cable)
|
30 dB Typical
|
Noise Figure
|
1.5 dB
|
DC Voltage
|
2.2~5 V
|
DC Current
|
5~15 mA
|
3) GSM Antenna
|
|
Frequency Range
|
824~894 MHz/1710~2170 MHz
|
880~960 MHz/1710~2170 MHz
|
|
V.S.W.R
|
2.0:1
|
Impedance
|
50 ohm
|
Typical Gain(w/o cable)
|
2 dBi
|
Polarization Type
|
Vertical or Horizontal
|
4) Mechanical
|
|
Size
|
D80*14mm
|
Mounting
|
Adhesive
|
Housing
|
Black
|
Package
|
120*95*30mm
|
Cable
|
RG174, 3m or others
|

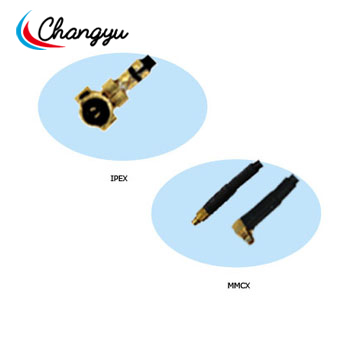

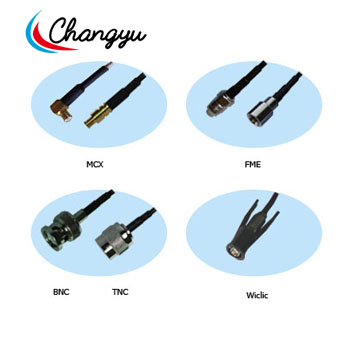

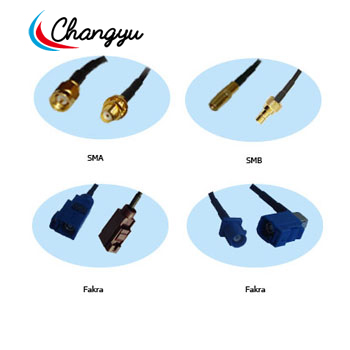

Connector
|
SMA/MCX/FME or others
|
5) Environmental
|
|
Working Temp.
|
-40℃~+85℃
|
Humidity
|
55%~75%RH
|
Waterproof
|
IP67
|
