GPS/COMPASS Antenna


Name:GPS/COMPASS Antenna

  • GPS/COMPASS Antenna

Product Description


GPS/COMPASS Antenna

Specification


1) Dielectric Antenna
GPS Frequency 1575.42 MHz
Gompass Frequency 1561 Mhz
V.S.W.R 1.5:1
Band Width ±5 MHz
Impedance 50 ohm
Polarization Type R.H.C.P
2) LNA/Filter
LNA Gain(w/o cable) 30 dB Typical
Noise Figure 1.5 dB
DC Voltage 2.2~5 V
DC Current 5~15 mA
4) Mechanical
Size 47x36x15mm
Mounting Magnetic/Adhesive
Housing Black
Cable  RG174, 3m or others

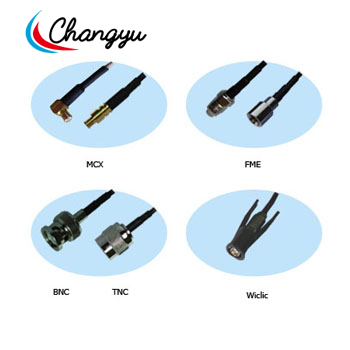

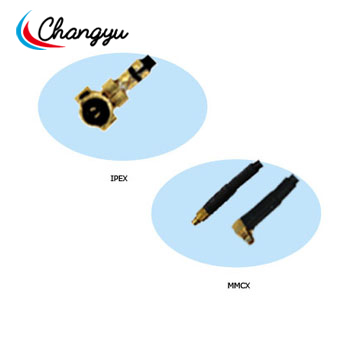

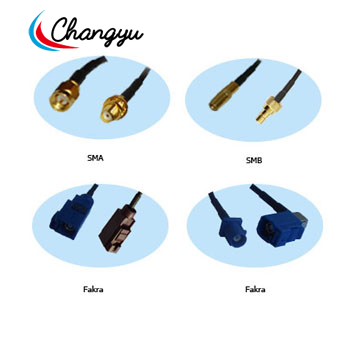

Connector SMA/MCX/FME or others
5) Environmental
Working Temp. -40~+85
Humidity 55%~75%RH
Waterproof   IP67
